Wall Mounted Fixed Ladder — Steel Ladder Wall Mount
A wall mounted ladder that bolts straight to the structure. This steel ladder wall-mounts in Q235B or SS304, built to OSHA 1910.23 and EN ISO 14122-4, and ships factory-direct from Dengtai to 50+ countries.
Overview
What Is a Wall Mounted Fixed Ladder?
A wall mounted fixed ladder is a permanent vertical ladder anchored to a wall, parapet, or steel column. It does not lean and it does not move. We set the ladder wall standoff so boots and gloves clear the surface, then size the climb to the exact height on your drawing. Built from Q235B carbon steel or SS304 stainless, every unit leaves the floor squared and rung-checked.
In our factory, we usually pre-drill the stand-off brackets before the ladder ships, so the install crew skips on-site templating. Small step. It saves about an hour on the wall and keeps the anchor pattern exact.
These ladders go onto warehouse mezzanines, industrial plant rooms, and exterior building walls where crews need daily roof or platform access. A food-processing plant in Southeast Asia recently took a batch of SS304 wall mounted ladders for washdown areas; the run shipped with material certificates and third-party SGS inspection on file.
Wall mounted fixed ladder, hot-dip galvanized Q235B
Specifications
Specifications: Q235B Carbon Steel and SS304 Stainless
SS304 Stainless
Material certificate per batch
Standard Dimensions
Cut to your wall height. These are the defaults we run unless a project drawing says otherwise.
| Parameter | Value |
|---|---|
| Material | Q235B carbon steel (HDG) or SS304 / SS316 stainless |
| Rung spacing | 250 mm (OSHA 1910.23 / EN ISO 14122-4) |
| Clear climbing width | 400–600 mm |
| Rung diameter | 20 mm round bar, anti-slip |
| Ladder wall clearance (standoff) | ≥ 178 mm (7 in) per OSHA 1910.23; 150–200 mm typical |
| Min. rung load | 1.5 kN single concentrated load |
| HDG coating thickness | 70–85 µm |
| Side-rail extension | ≥ 1,067 mm (42 in) above landing per OSHA 1910.23 |
| Anchor type | Through-bolt, chemical, or expansion anchor to suit substrate |
| Fall protection | Safety cage or vertical rail / lifeline per OSHA 1910.23 |
| Finish options | Hot-dip galvanized, powder coat, or stainless |
| Max height | Cut to site; rest platforms per standard |
Compliance
OSHA 1910.23 and EN ISO 14122-4 Compliance
In-House Load Testing
Sample tension test, every batch — ISO 9001:2015
OSHA 1910.23 Compliant
Rung spacing, the ≥178 mm (7 in) wall clearance, and side-rail extension above the landing all follow the US fixed-ladder rule. Past 24 ft (7.3 m), we add a ladder safety system or cage.
EN ISO 14122-4 Build
Side rails, rung geometry, and guard or cage to the European standard for permanent means of access to machinery and structures. BS 4211 on request.
Certified Materials & Hardware
Q235B, SS304, or SS316 with material certificates and weld-inspection reports per batch. Ladder wall mounting hardware is matched to your substrate.
Load-Tested In House
Each batch is sample tension-tested; third-party inspection by SGS, TÜV, or Bureau Veritas on request. Built under ISO 9001:2015.
Installation
Wall Mounting and Installation

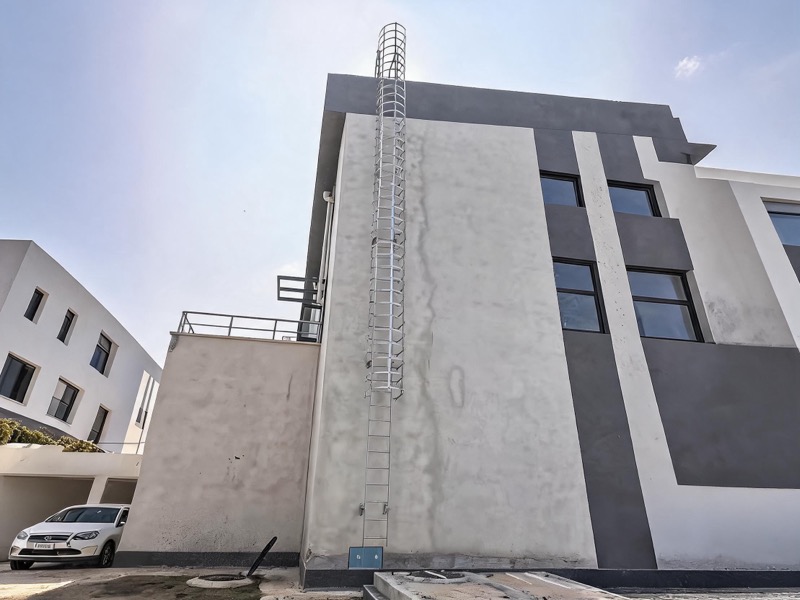

1. Survey the Wall
Confirm substrate (concrete, block, or steel), climb height, and top-landing position before fabrication.
2. Set Stand-Off Brackets
Fix brackets with the specified anchor type at the right spacing; hold the standoff so hands and feet clear the wall.
3. Bolt the Flights
Assemble sections, align rungs at 250 mm, and level the stiles.

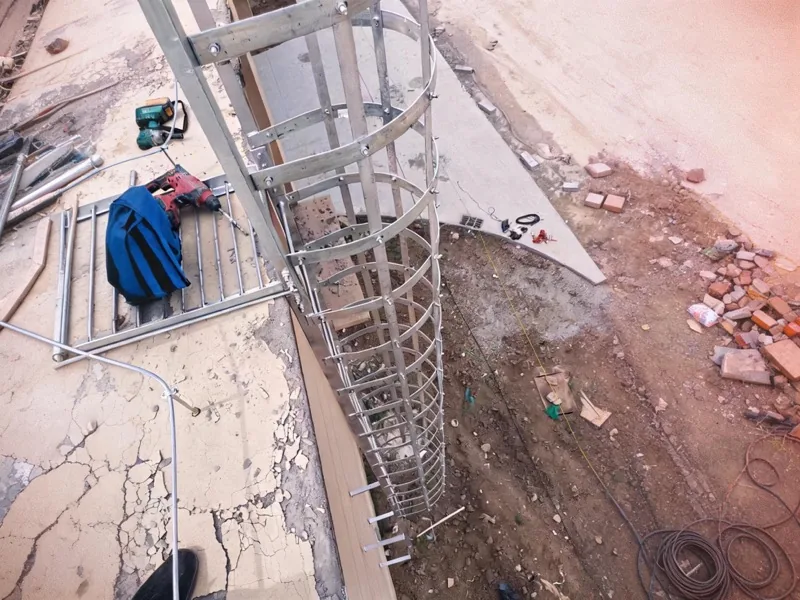

4. Fit Fall Protection
Add a safety cage or vertical rail / lifeline once the climb crosses the OSHA 1910.23 height trigger.
5. Inspect & Hand Over
Load-check, weld and anchor inspection, then hand over certificates and load-test data.
Related
Related Fixed and Caged Ladders
Roof Ladder Systems
Compare every access-ladder type in one guide — fixed, cat, and caged.
Fixed Roof Access Ladder
Permanent vertical ladder for ground-to-roof access in Q235B or SS304.

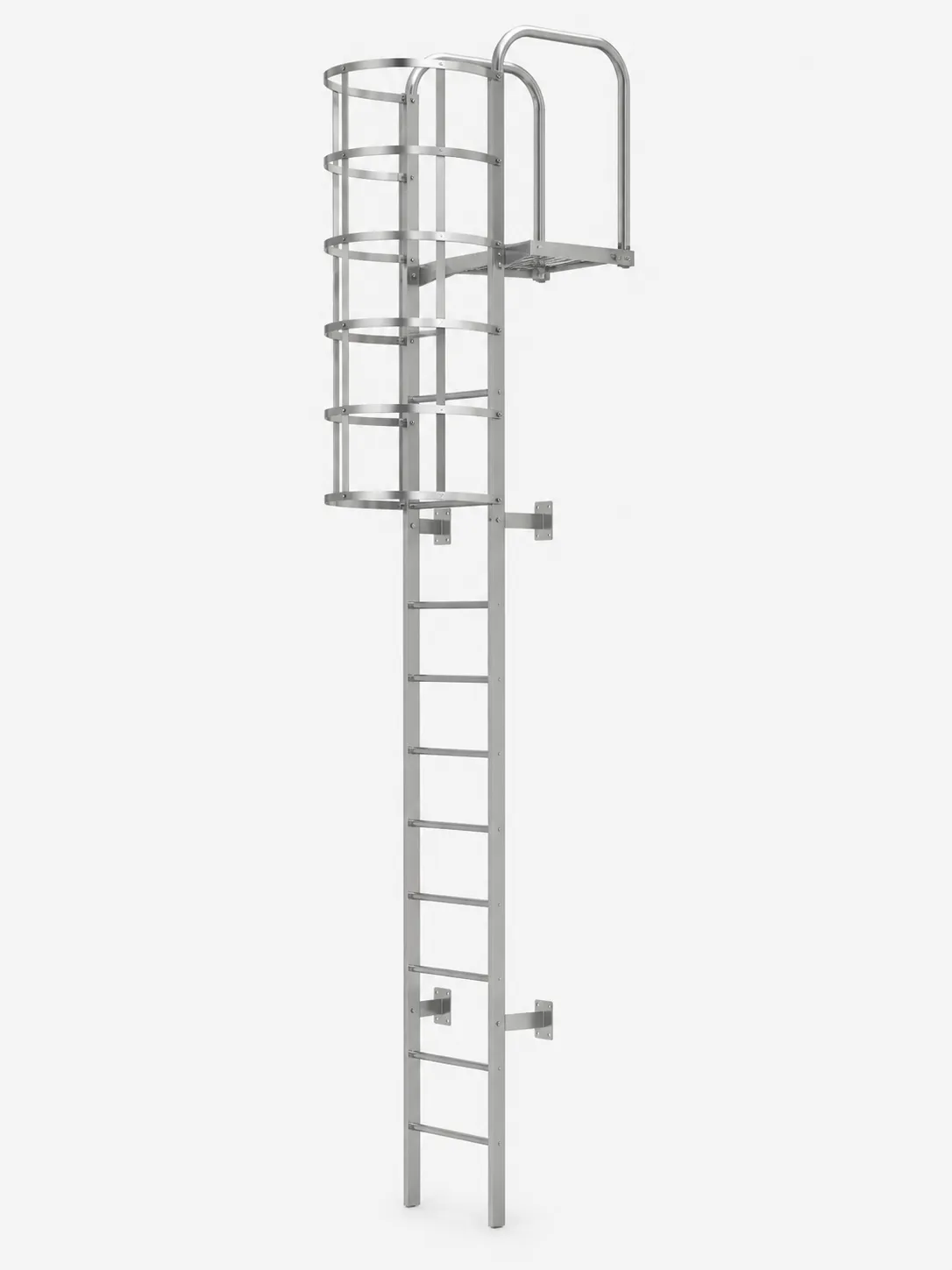

Caged Roof Access Ladder
Caged ladder for tall wall runs that cross OSHA fall-protection heights.
FAQ
Frequently Asked Questions
Factory-Direct Pricing on Wall Mounted Fixed Ladders
Send the climb height, wall substrate, material, and fall protection you need. As the factory, we quote direct — no middleman — with material certificates, weld reports, and load-test data included. We welcome third-party factory audits.
