What is a fixed ladder? A fixed ladder is a permanent steel access ladder bolted to a wall, tank, or machine so workers can climb to a height and return the same way. It does not lean and it does not move. We build these every week at our 8,000 m² factory in Shijiazhuang, and the same question comes up again and again: what counts as a fixed ladder, and when do you need one?
This guide gives a plain fixed ladder definition, then walks through the types, the parts, the standards, and the jobs they do. Read it before you specify, and you order the right ladder once.
What Is a Fixed Ladder, Exactly?
A fixed ladder is an access ladder permanently attached to a structure, set vertical or near-vertical, with two side rails (stringers) and evenly spaced rungs. The plain fixed ladder meaning is in the name: it is fixed in place. A portable ladder leans and stores away. A permanent fixed ladder stays bolted to the building for its whole service life.
In our workshop we cut the stringers from Q235B structural steel, or SS304 stainless when a site is coastal or washed down often. Then we weld the rungs at a set pitch and proof-load the assembly. The result is a rated route, not a guess.
Engineer's note: clients often ask whether a "cat ladder" is something different. It is not a separate species. A cat ladder is simply a plain vertical fixed ladder, usually short.
Fixed Ladder vs Other Types
Once the fixed ladder definition is clear, the next step is picking a configuration. The common types of fixed ladders are easy to tell apart.
- Cat ladder — a plain vertical ladder for short climbs, usually under 3 m. Light and quick to fit.
- Standard fixed ladder — the workhorse, rated for daily, repeated loads.
- Caged ladder — adds hoop guards on tall climbs. Common on tanks and silos.
- Walk-through / hatch ladder — lands at a hatch, with rails extending 1,070 mm above the opening for a safe step-off.
Not sure which fits? Our full product range lists load ratings side by side, and our roof access guide compares them for rooftop jobs.
Key Components and Materials
Strip a fixed ladder down and the parts list is short and predictable:
- Side rails (stringers) — Q235B steel flat bar, or SS304/SS316 for marine and washdown sites.
- Rungs — round or serrated bar at 300 mm pitch, anti-slip on every step.
- Standoff brackets — hold the ladder about 200 mm off the wall for toe clearance.
- Safety cage — hoops spaced no more than 1,200 mm apart on caged versions.
- Walk-through rails — extending 1,070 mm above a landing.
On load, a single rung is proof-tested to a 1.5 kN point load, and the full ladder to its rated duty. We hot-dip galvanize to 70–85 µm as standard, and powder coat over zinc when colour matters. Every batch is sample-pulled for weld strength before it leaves the floor.
Governing Standards: OSHA, EN ISO and BS
A compliant fixed ladder follows a published standard, not a habit. Three come up most:
- OSHA 1910.23 (United States) — the OSHA fixed ladder rules set rung spacing, clearances, and fall protection. New fixed ladders over 24 ft must use a personal fall-arrest or ladder safety system, not a cage.
- EN ISO 14122-4 (Europe) — covers permanent means of access to machinery.
- BS 4211 (United Kingdom) — the British spec for permanently fixed ladders.
Fall protection drives most design choices. Ask it early: cage, or fall-arrest rail? For a fixed ladder for roof access on a tall plant, we usually fit a fall-arrest rail, which is what OSHA now prefers for new builds.
What Is a Fixed Ladder Used For?

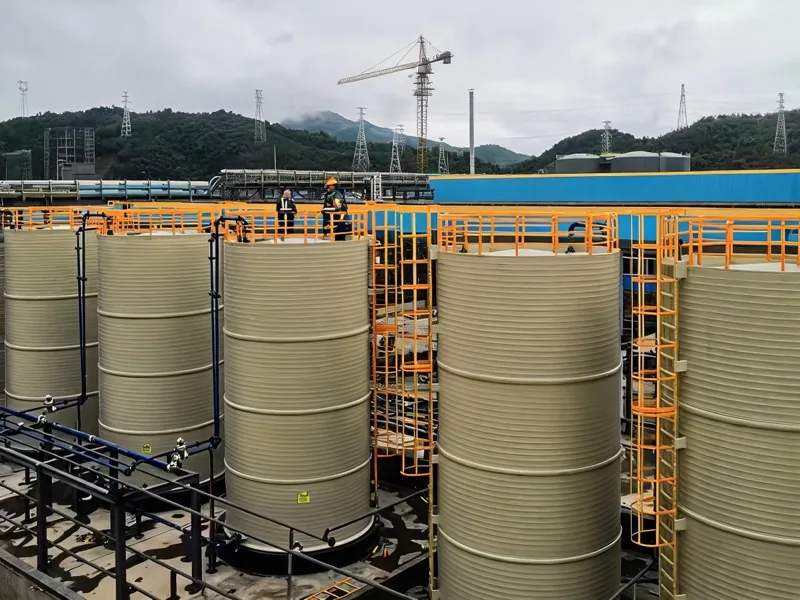

So, what is a fixed ladder used for in practice? Anywhere a person needs reliable, repeated access to a height. Factories and warehouses reach roof plant and mezzanines. Water utilities climb storage tanks. Telecom and solar crews service rooftop kit. Industrial fixed ladders also serve silos, gantries, and inspection platforms.
One example from our records: a food-processing group in Southeast Asia ordered caged fixed ladders for a new plant. We supplied SS304 throughout for washdown resistance, with material certificates and load-test reports per batch. The line passed its local safety audit on the first visit.
Browse real installs on our applications page to see where these ladders go.
Why Buy a Fixed Ladder Factory-Direct
Buying direct from the factory removes the trading-company markup and the guesswork. You talk to the engineers who weld the ladder, not a middleman with a catalogue. That is how we have shipped to 50+ countries since 2003.
Every order ships with the paperwork an inspector asks for: material certificates, weld reports, and load-test data. The factory holds ISO 9001:2015, and third-party inspection by SGS, TÜV, or Bureau Veritas is available on request. Buyers are welcome to audit the plant in person.
Specifying a project? Send your height and standard, and our team returns a drawing, load rating, and factory-direct quote. Talk to our engineers or check the FAQ.
