A fixed ladder is a permanently mounted steel ladder that gives workers safe, repeatable access to a height — a warehouse mezzanine, a plant deck, a rooftop chiller, an inspection platform. It bolts to the structure, carries a rated load at every anchor, and stays put for the life of the building. This hub gathers what our engineers get asked on real export jobs: the types, the standards, how to choose, and what factory-direct pricing actually buys.
Dengtai builds these units for export. We are a factory-direct steel ladder manufacturer in Shijiazhuang, ISO 9001:2015 certified, running an 8,000 m² floor since 2003. The notes below come from the people who cut and weld the steel.
What Is a Fixed Ladder
A fixed ladder is a vertical or near-vertical access ladder anchored to a structure so people can reach a level without scaffolding or a leaning ladder. Rungs sit at an even pitch. The stiles extend past the landing so you step off rather than lunge. On taller climbs it adds a cage, a rail, or a ladder safety system. For the full primer, see What Is a Fixed Ladder, and weigh it against other access methods in Fixed Ladder Alternatives and Fixed Ladder Pros and Cons.
Types of Fixed Ladders
Six configurations cover almost every job we quote. Each suits a different mounting surface, climb height, and use case.
| Type | Best for | Typical material | Standard reference |
|---|---|---|---|
| Wall Mounted Fixed Ladder | Straight runs bolted to a wall or parapet | Q235B galvanized | OSHA 1910.23, EN ISO 14122-4 |
| Warehouse Fixed Ladder | Mezzanine and racking access indoors | Q235B galvanized | OSHA 1910.23, EN ISO 14122-4 |
| Vertical Fixed Access Ladder | Tall straight climbs to plant and tanks | Q235B / SS304 | EN ISO 14122-4, BS 4211 |
| Inspection / Service Fixed Ladder | Routine maintenance and equipment service | SS304 / SS316 | EN ISO 14122-4, AS 1657 |
| Walkway Fixed Ladder | Access tied into elevated walkways and gantries | Q235B galvanized | EN ISO 14122-4, AS 1657 |
| Fixed Ladder Safety System | Fall-arrest retrofit on tall existing ladders | SS304 rail + glider | OSHA 1910.29, EN 353-1 |
Region decides the fall-protection method, which trips up a lot of buyers. OSHA moved new fixed ladders over 24 ft away from cages toward a fixed ladder safety system, while EN ISO 14122-4 still works on a height threshold for hoops. For a deeper comparison see types of fixed ladders coverage inside How to Choose a Fixed Ladder.
Key Standards and Compliance
This is where a fixed ladder earns its keep, and where a cheap one gets a site shut down. Five standards cover most of our export work, by market:
- OSHA 1910.23 — the US rule for fixed ladders: rung strength, pitch, and fall-protection triggers. Every OSHA fixed ladder we ship is built to the 1910.23 rung-load and clearance requirements. See OSHA 1910.23 Fixed Ladder Requirements.
- EN ISO 14122-4 — the European standard for permanent means of access, covering rung spacing, width, and cage clearances. See EN ISO 14122-4 Fixed Ladder.
- BS 4211 (UK), AS 1657 (Australia), and IS 3696 (India) — the regional specifications for permanently fixed ladders. We match whichever governs your site; details in BS 4211 / AS 1657 / IS 3696 Requirements.

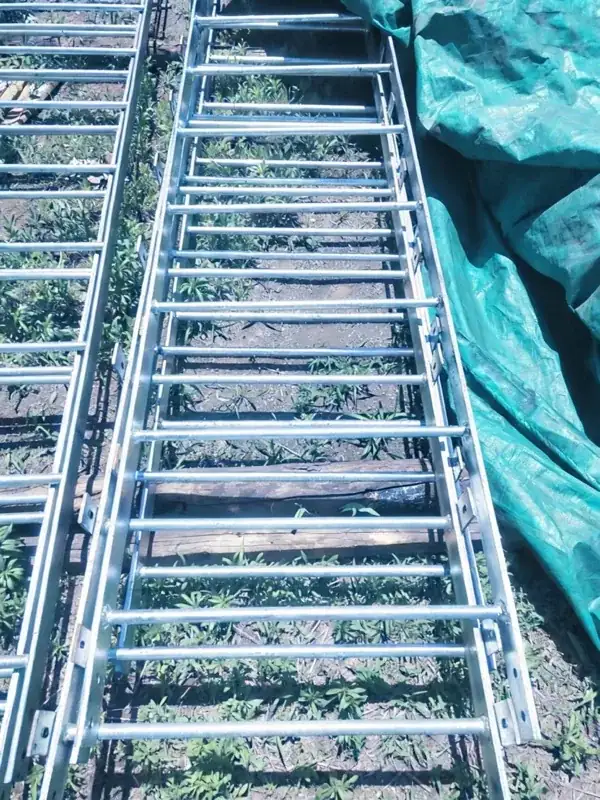

The numbers matter. Each top bracket on our ladders is designed to hold 6 kN, a 2:1 margin over the 3 kN minimum we test to. Rung spacing runs 250–300 mm on centre per EN ISO 14122-4. Standoff keeps grip clearance at 150–200 mm. Hot-dip galvanizing lands at 85–140 µm, above the 85 µm floor most specs ask for; we coat after fabrication so every cut edge and drilled hole stays sealed. For climbs that exceed the cage trigger, the Fixed Ladder Fall Protection guide explains the rail-and-glider route. We sample pull-test each batch to failure on our own rig and keep the load test data on file; SGS- or TUV-witnessed pull tests are available when a project needs third-party proof.
Dimensions, Load and Specifications
Width, rung pitch, and landing extension are fixed by the standard, not by preference. Load rating is set by the anchor and the substrate. Get these right and the unit outlasts the roof.
- Fixed Ladder Dimensions — OSHA and EN ISO sizing in inches and millimetres.
- Fixed Ladder Specifications — the full data sheet our engineers quote from.
- Fixed Ladder Weight and Load Capacity — how rung and bracket loads are rated and tested.
How to Choose a Fixed Ladder
Get five things right and the spec is buildable on the first pass.
- Substrate — concrete, steel purlin, and timber each need a different anchor. Tell us what you are fixing into.
- Material grade — Q235B carbon steel, hot-dip galvanized, suits dry indoor sites. We switch to SS304 for coastal or chemical exposure, and SS316 where salt is heavy.
- Height and fall-protection trigger — the climb decides whether you need a cage, a rail, or a ladder safety system under your governing standard.
- Use case — warehouse, vertical plant access, inspection, or walkway tie-in changes the geometry.
- Custom geometry — offset landings, tight parapets, and odd pitches are routine; see Custom Fixed Ladder Design.
Walk the full process in How to Choose a Fixed Ladder, then check fit against How to Install a Fixed Ladder, the field Fixed Ladder Inspection Checklist, and the Fixed Ladder Maintenance Guide before you sign off. Buyers also ask how long the steel lasts — the honest answer is in How Long Does a Fixed Ladder Last.
Factory-Direct Pricing and Proof
You buy from the people who cut the steel. No trading company, no distributor markup between the drawing and the dispatch. That shows up in two places: the price and the paperwork. Every order ships with material certificates, weld inspection reports, and load test data — the documents that prove the build. We export to 50+ countries and have shipped 500+ projects since 2003, and clients are welcome to audit the line in person before they commit.
One recent example: a food-processing plant in Southeast Asia ordered 22 SS304 inspection units with walk-through handrails. All passed on-site pull-tests at 6 kN, and the batch shipped in 21 days with SGS-witnessed test reports. For real budgeting numbers read How Much Does a Fixed Ladder Cost and the sourcing checklist in Where to Buy Fixed Ladders. When you are ready, send a drawing or a rough spec to our engineers through the contact page and you will get a buildable quote with a load table.
Our Fixed Ladder Range and Resources
Browse the six core products, each built to order in carbon or stainless steel:
- Wall Mounted Fixed Ladder — straight access bolted to a wall or parapet.
- Warehouse Fixed Ladder — mezzanine and racking access, Q235B galvanized.
- Vertical Fixed Access Ladder — tall straight climbs to plant and tanks.
- Inspection / Service Fixed Ladder — SS304 or SS316 for routine service.
- Walkway Fixed Ladder — ties into elevated walkways and gantries.
- Fixed Ladder Safety System — rail-and-glider fall arrest for tall existing ladders.
See the complete lineup on the products overview, common questions on the FAQ page, and the full set of engineering guides in our blog — all written by the engineers who build the ladders.
